Aluminum Molds for Injection Molding: When to Use Them

Aluminum molds for injection molding can be a practical choice when a team needs molded parts before committing to long-run steel tooling. The choice depends on the resin, part design, expected quantity, revisions and the life required from the tool. An aluminum mold is not automatically cheaper or faster for every project, and a quoted tool life should be based on the actual design.

When aluminum tooling is worth considering

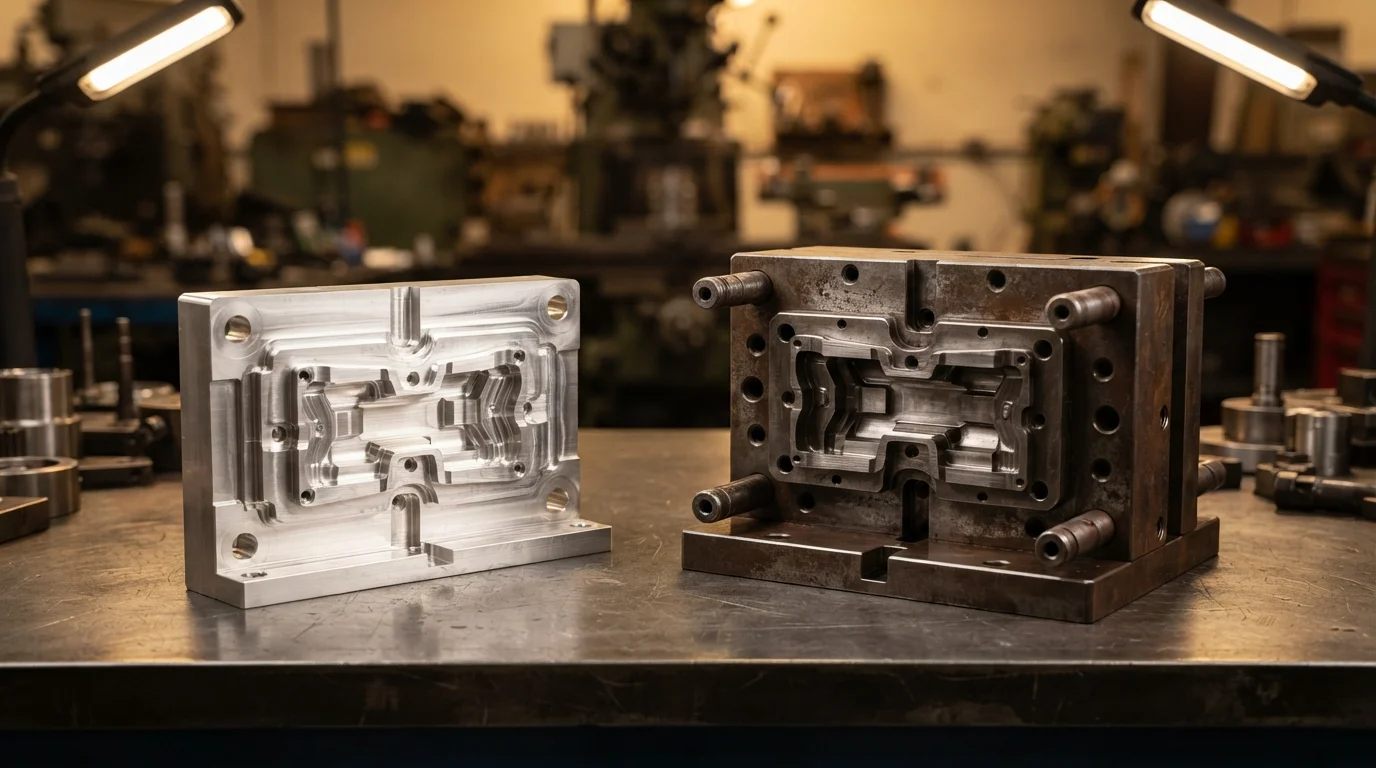

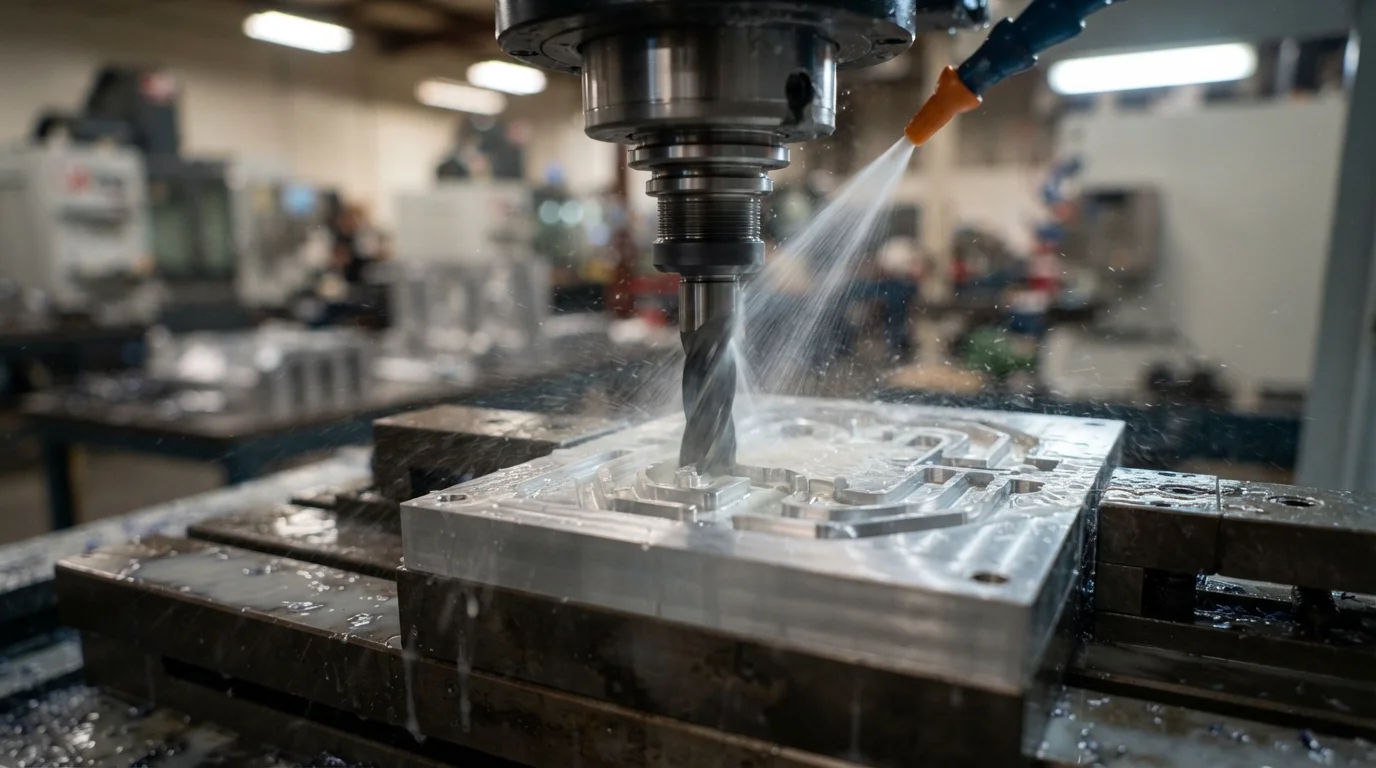

Aluminum is generally easier to machine than hardened tool steel. That can make it useful for prototype, pilot and bridge tooling while a design or demand is still changing. It also allows the team to mold parts from the specified thermoplastic rather than judging only a printed or cast substitute. Protolabs’ tooling comparison describes the same basic trade-off: aluminum often suits shorter or changing programs, while steel is usually favored for sustained high volume, abrasive materials and demanding tool life. Its figures describe its own processes and must not be treated as a Jucheng quote.

Where steel or a hybrid tool may make more sense

A glass-filled or otherwise abrasive resin, a large projected quantity, complex sliding features or a demanding surface requirement can change the tooling choice. The contact surfaces, inserts, core pins and maintenance plan matter as much as the base plate material. Some tools combine materials in different regions. Decide from the part and program, not from the word “rapid” alone.

What to check before cutting the mold

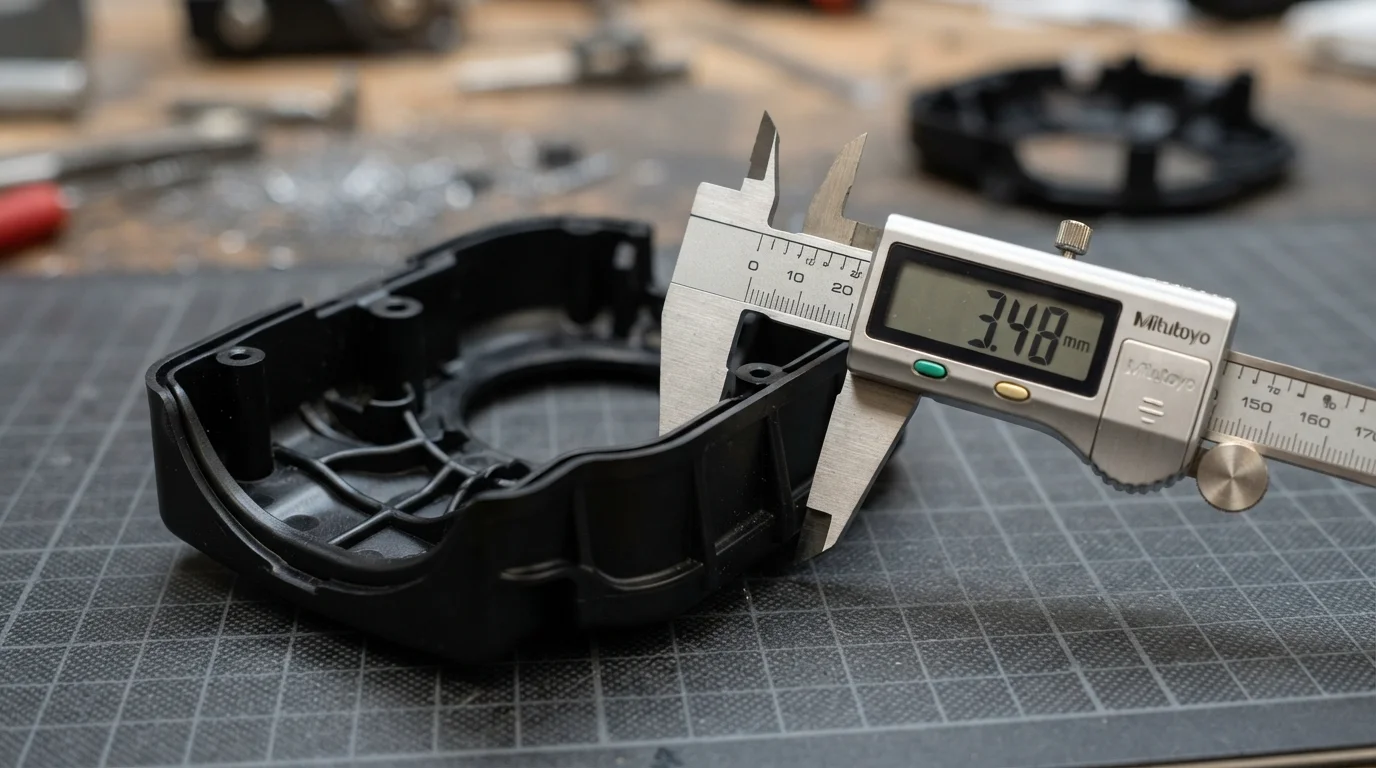

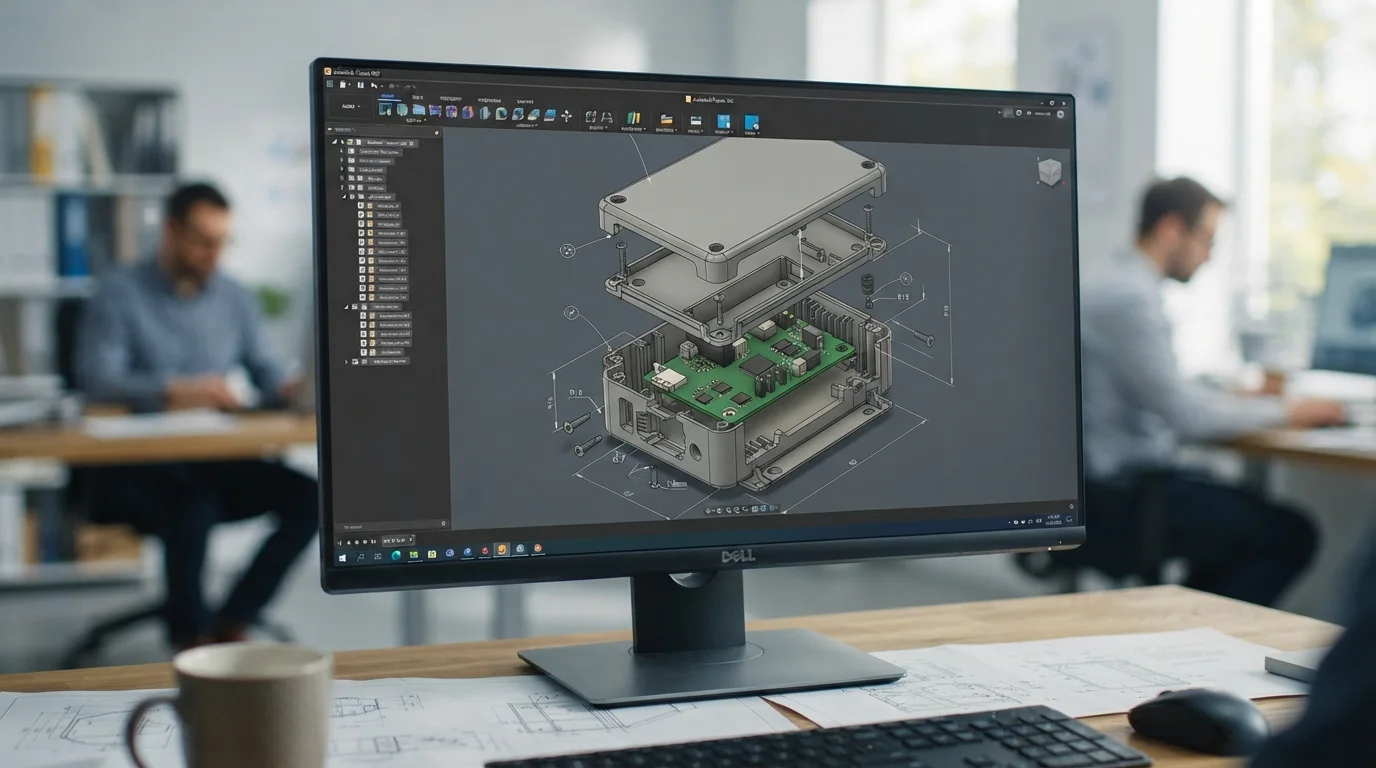

  • Part geometry: review draft, wall transitions, ribs, undercuts and ejection surfaces.
  • Exact resin grade: state fillers, required appearance and any material restrictions. The resin affects wear and process conditions.
  • Quantity and revisions: distinguish pilot samples from the expected lifetime production volume.
  • Tool construction: agree on cavities, inserts, expected changes, maintenance and ownership in the quotation.
  • Part acceptance: mark critical dimensions and cosmetic surfaces and define how samples will be checked.

Prototype molded parts still need validation

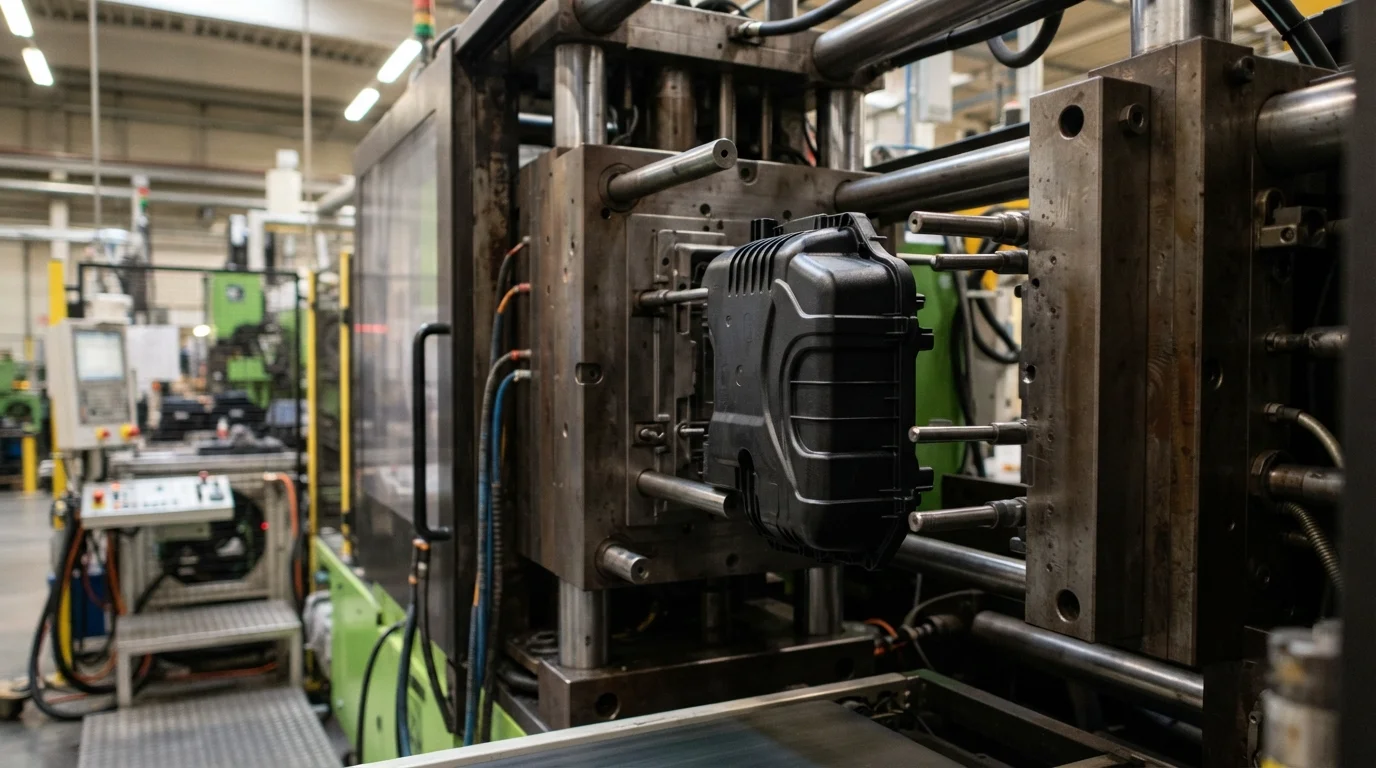

An aluminum mold can use the intended production resin when the tool and process are suitable. That is useful for checking fit and selected material behavior. It does not mean every process setting, dimension or appearance will transfer unchanged to a later steel mold. Gate, cooling and tool construction may differ. Keep the drawing revision, resin lot, inspection method and sample results together so the next tool can use what was learned.

Request a tooling comparison for your project

Send the 3D model, controlled drawing, exact resin grade, intended quantity, expected design changes, critical dimensions and required finish. Ask for the aluminum and steel routes to state tool scope, sample plan and assumptions separately. Our injection molding service can review the part and discuss a suitable tooling route. The answer should come from the project requirements, not a fixed percentage saving or a universal lead-time promise.
