Controlling thermal energy inside an injection molding cavity dictates more than just structural part solidification; it directly governs manufacturing press productivity and overall per-piece unit pricing. When molten thermoplastic resin surges into a cold metal tool at high temperatures, the speed at which that thermal energy dissipates sets the rhythm for the entire production line. Slower cooling cycles mean extended machine press holding times, driving up operational expenses across pilot runs.
Investigating thermal conductivity aluminum vs p20 molds reveals a massive thermodynamic advantage for non-ferrous aerospace alloys in fast-paced bridge manufacturing. Exploring these heat transfer mechanics helps tool designers engineer smarter cooling channels that maximize press throughput and lower component manufacturing costs.
Inhaltsverzeichnis
1. The Physics of Heat Dissipation: Why Aluminum Cools Faster
2. Reducing Injection Molding Cycle Times and Piece-Part Prices
The Physics of Heat Dissipation: Why Aluminum Cools Faster
The fundamental structural difference in thermal conductivity between aluminum and pre-hardened steel stems from atomic crystal lattice vibrations and electron mobility. Aerospace-grade AL7075-T6 aluminum possesses a thermal conductivity rating roughly three to five times higher than standard P20 alloy steel. This means thermal energy travels outward through aluminum mold blocks toward internal cooling waterlines at an accelerated rate, pulling heat away from solidifying polymer faces with remarkable efficiency.
Utilizing an agile Spritzguss-Service equipped with precision temperature control units maximizes this cooling delta, ensuring resins like ABS oder Polycarbonat (PC) achieve structural rigidity much quicker during rapid pilot runs.
Contrasting thermodynamic performance metrics across rapid tooling alloys involves monitoring specific thermal properties:
| Thermal Property | AL7075-T6 Aluminum Molds | Formen aus vorgehärtetem P20-Stahl |
|---|---|---|
| Thermal Conductivity Index | Approx. 130 W/m-K (High dissipation) | Approx. 40 W/m-K (Moderate retention) |
| Polymer Solidification Speed | Fast heat extraction shortens cooling phase | Slower heat bleeding extends press dwell duration |
| Overall Press Cycle Efficiency | Optimized for rapid short-run turnaround | Balanced for extended batch durability |
Reducing Injection Molding Cycle Times and Piece-Part Prices
Question: How do faster cooling rates directly translate into reduced financial expenditures during commercial bridge manufacturing? Shorter cooling intervals decrease total machine press seconds per shot, lowering hourly press billing fees and reducing marginal piece-part expenses.
Because machine press time is billed directly by the hour, saving ten to fifteen seconds on every single injection cycle accumulates into massive cost savings over a five-hundred or thousand-part production run. Sourcing a dedicated Schnellwerkzeugbau-Service ensures cooling line layouts are engineered to exploit aluminum’s thermal superiority fully.
Optimizing thermal management and maximizing press productivity involves tracking key engineering guidelines:

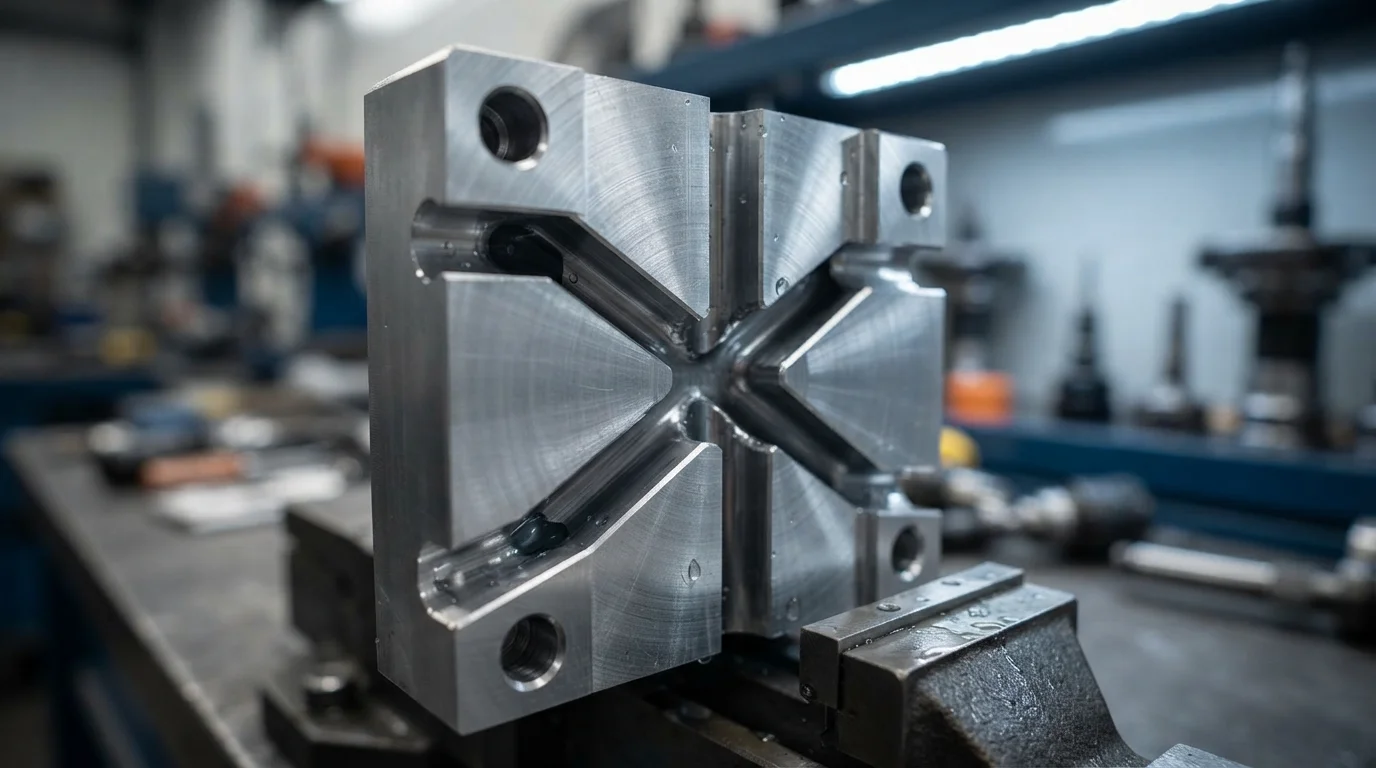

- Placing waterlines close to cavities—Routing cooling channels within optimal distance of hot polymer zones
- Balancing fluid turbulence—Ensuring coolant flow rates maintain turbulent transfer dynamics inside tool blocks
- Avoiding thermal hotspots—Targeting localized cooling inserts in deep structural ribs or thick bosses
Optimized Cooling Design and Molding at Jucheng Precision

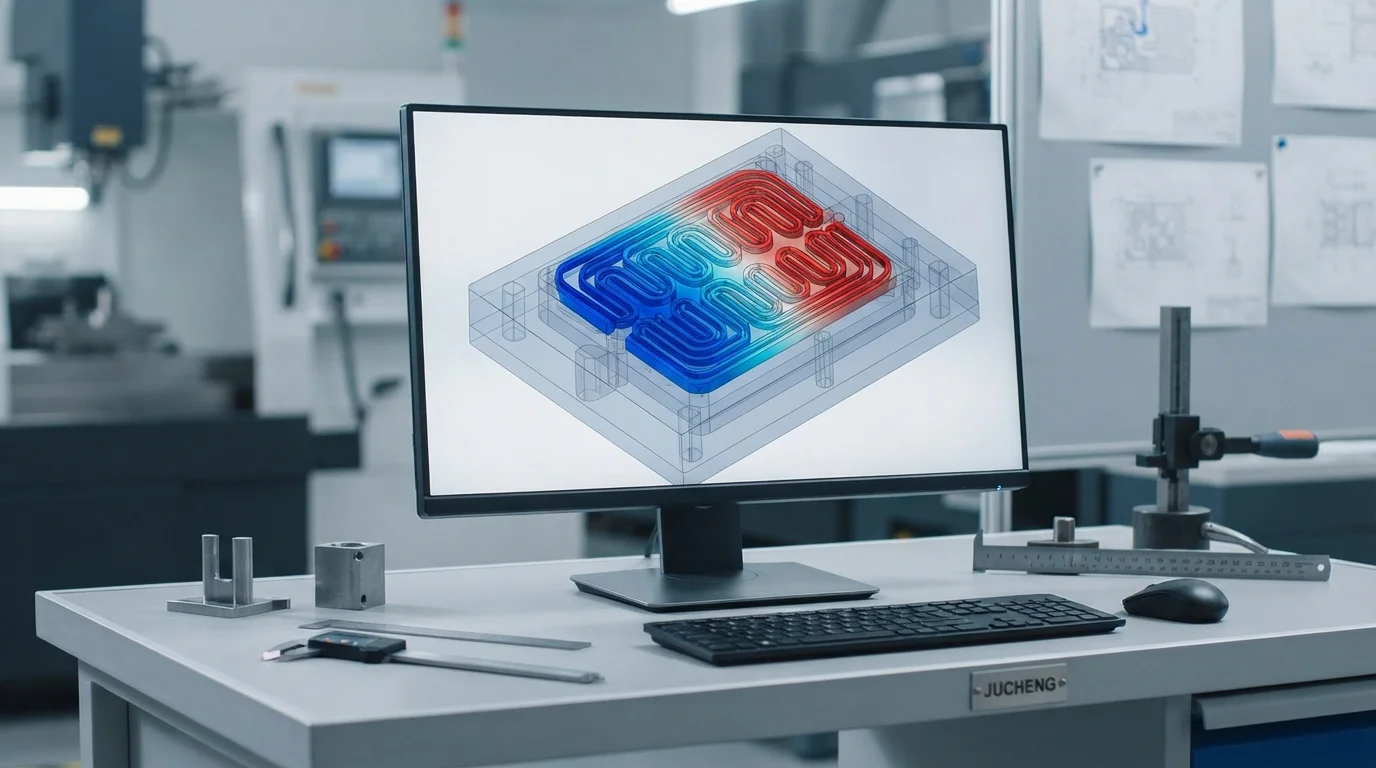

Engineered thermal control requires sophisticated CAD simulation and precise multi-axis toolroom execution. Jucheng Precision supports hardware innovators by delivering comprehensive 24-Stunden-kostenlose DFM reviews that analyze cooling line layouts, gate positioning, and alloy thermal profiles prior to cutting metal. Backed by 150+ advanced CNC machines and 35+ specialized injection molding workstations under strict ISO 9001 governance, our engineering teams ensure your bridge tooling achieves optimal cycle velocity and part stability. Explore our optimized cooling design and molding capabilities at Jucheng Precision to elevate your next manufacturing program.
Häufig gestellte Fragen (FAQ)
Why does aluminum offer higher thermal conductivity than P20 steel in molds?
Aluminum’s atomic crystal lattice and electron mobility allow it to dissipate heat roughly three to five times faster than P20 steel, rapidly pulling thermal energy away from molten polymer.
How do faster cooling rates reduce piece-part prices in injection molding?
Shorter cooling intervals decrease total machine press seconds per shot, lowering hourly press billing overhead and substantially reducing marginal per-piece manufacturing expenses.
How does Jucheng Precision optimize mold cooling performance?
Jucheng Precision provides 24-hour free DFM reviews, expert thermal simulation, and precision CNC cooling line integration across 35+ dedicated injection molding workstations.
