Medical device design controls connect requirements, design outputs, review and evidence throughout development. For a component manufacturer, their practical value is straightforward: the released package should explain what must be built, why key features matter and how conformance will be demonstrated without relying on a designer’s unwritten knowledge.
A detailed CAD model is valuable, but it does not communicate every material, finish, assembly and acceptance decision. This guide follows a hypothetical enclosure-and-seal requirement through the engineering records. It is an illustrative manufacturing example, not a customer case or a complete regulatory procedure.

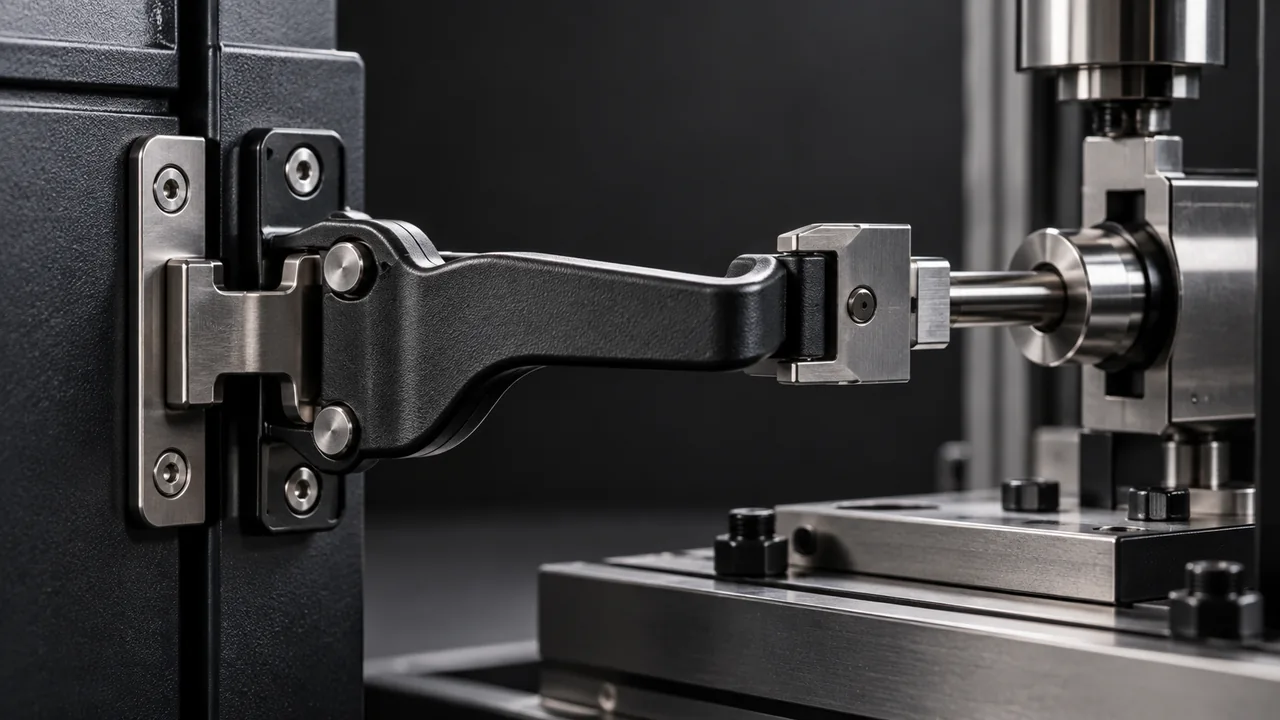

Turn the User Need Into a Testable Engineering Input
A request that an enclosure should protect the mechanism is too broad for a supplier to verify. The development team needs to establish relevant environmental, handling and operating conditions, then define the requirements that protect the intended use. The specification must reflect justified device needs rather than convenient factory measurements.
For the hypothetical sealed enclosure, identify what must remain protected, which interfaces can be exposed and the relevant assembly and use conditions. Determine who owns the acceptance criterion. If the requirement is unresolved, label it as unresolved instead of quietly letting the supplier choose a convenient limit.
Avoid confusing a proposed solution with the underlying requirement. A particular wall thickness is a design decision; surviving an identified load without unacceptable damage is a functional requirement. Both can belong in the records, but their relationship should be clear.
Die medical device design guidelines parent page addresses broader geometry and development considerations. Design controls add the disciplined link between those decisions, their inputs and the evidence that supports release.
Make Ambiguity Visible Early
Words such as robust, easy, clean and precise can hide different expectations. Ask what condition makes the requirement fail, what method will evaluate it and which configuration is relevant. A disagreement discovered in a requirements review is easier to resolve than the same disagreement after a production mold is completed.
Keep assumptions separate from approved inputs. If the team initially assumes a cleaning agent, assembly load or service environment, record it and assign an owner to confirm it. Unlabeled assumptions can become accidental requirements that later generations of engineers do not question.
Create Outputs That Manufacturing Can Reproduce
Design outputs should include the information necessary to make and evaluate the component: controlled geometry, material identity, surface condition, assembly interfaces and relevant acceptance requirements. The exact record set depends on the device and quality system, but the factory needs an unambiguous manufacturing basis.
For the enclosure, define the seal groove, mating land, fasteners and assembly condition. State whether dimensions apply before or after finishing and how flexible components are measured. A toleranced drawing without its inspection state can still leave a critical interface open to interpretation.
| Input or decision | Manufacturing output | Evidence link |
|---|---|---|
| Protect the internal mechanism under defined conditions | Enclosure interfaces and appropriate acceptance criteria | Relevant finished-assembly test |
| Maintain the sealing interface | Groove, mating surface and seal specification | Dimensional and functional evidence |
| Use the selected material system | Exact grades, treatments and permitted substitutions | Material records and relevant evaluation |
| Assemble without damaging the housing | Fastening method and controlled assembly conditions | Representative build and inspection results |
| Preserve repeatability | Revision-controlled instructions and acceptance plan | Release records and change assessment |
Treat the table as an example of traceability, not a universal template to copy into every medical development project. The useful record is the one that links the actual requirement to the actual output and evidence.
Prototypenbau can provide hardware for selected development questions. Identify its differences from production so a favorable trial does not become unsupported evidence for a material or process it did not represent.
A Supplier Needs the Requirement Behind the Critical Feature
Explain why a dimension or surface is important without overloading the supplier with unrelated clinical information. Knowing that a land supports a seal can change the manufacturing review of burrs, handling and inspection. Knowing that a feature only locates a temporary fixture can prevent unnecessary cost.
Control the bill of materials and purchased-component interfaces as well as the custom part. An approved enclosure cannot be assessed in isolation if a substituted seal or fastener changes the assembled condition.
Link Reviews, Tests and Changes to the Same Configuration
A design review should identify the configuration under discussion and the decisions reached. Record unresolved issues and their owners. A meeting attended by the right people is not, by itself, evidence that the material, process and acceptance gaps were closed.
Verification asks whether outputs meet the specified inputs. Validation addresses whether the device fulfills the relevant intended-use needs. These activities should be planned and justified for the product; they are not interchangeable names for any successful prototype demonstration.
When a test reveals a problem, preserve the configuration and investigate the cause. Record the resulting change and which previous evidence remains applicable. If a seal groove is revised, the team should assess its effect on dimensions, assembly and relevant performance instead of updating CAD alone.
The existing medical device process validation article addresses manufacturing-process evidence. Keep it distinct from design evidence: a stable molding process does not establish that the design meets the intended use, and a successful design test does not establish every production-process requirement.
Keep the Regulatory Context Current
Die FDA QMSR became effective on February 2, 2026 and incorporates ISO 13485:2016. Teams should review applicable current requirements rather than treating historic references to the former regulation as a complete present-day procedure. Applicability and regulatory decisions require qualified review.
Legacy terminology can still appear in search queries, supplier documents and older records. Explain its context when needed, but do not rename a folder and assume the underlying development controls are adequate. The quality system needs a consistent, current method for controlling the actual records and activities.
Release the Package, Not the Designer’s Memory
Before transfer, ask whether another competent team can build the defined configuration and understand its acceptance criteria. Review the drawing, bill of materials, assembly information, inspection methods and evidence links as a package. Resolve contradictions before the supplier begins routine production.
Für CNC-Bearbeitung, identify the controlled material, functional surfaces and relevant dimensions. For a molded part, identify grade, tool-related witness limits and critical features. The released requirements should support the chosen route without inserting irrelevant specifications simply to make the document look complete.
Assign responsibility for supplier questions and proposed deviations. A machinist’s sensible suggestion may improve manufacturability, but it still needs an appropriate review if it changes an approved interface or requirement. Informal approval through an untracked conversation can break the link between the design and current hardware.
In a Jucheng manufacturing review, provide the controlled package and the physical role of the component. Confirm fabrication, inspection and record scope, along with the route for questions and changes. A well-defined handoff allows a manufacturing partner to contribute engineering judgment without silently taking ownership of device-level design or regulatory decisions.
What Is the Practical Test of a Good Output Package?
A qualified recipient can identify the configuration, make the part and evaluate the relevant requirements without guessing. If the recipient needs repeated verbal clarification of critical interfaces, the release package still contains unresolved design knowledge.
Must Every Development Prototype Follow the Final Production Route?
No. Early samples can answer specific questions using different routes. Document their role and limitations, and use appropriately representative hardware when the evidence depends on final materials, processing or assembly.
