Automotive Sub Assembly Services: Complete Turnkey Integration
Streamlining supply chain logistics by sourcing fully integrated, ready-to-install hardware modules instead of managing dozens of isolated component vendors represents a major strategic shift for modern vehicle manufacturers. When tier-one suppliers coordinate complex electric vehicle power boxes or chassis modules, executing professional automotive sub assembly operations becomes an indispensable asset. Without turnkey mechanical integration and hermetic gasketing, assembling disparate metal and plastic parts in-house introduces severe labor bottlenecks.
Utilizing an experienced contract manufacturing partner ensures that structural frames, busbars, and fasteners transition smoothly from single-part fabrication into cohesive, tested systems. Let us examine the mechanical fastening and automated sealing protocols that drive modern vehicle integration.
Module 1 – Definition and Working Principles of Turnkey Integration
Sub-assembly integration is an advanced manufacturing service where individual metallic and polymeric components are systematically joined into operational multi-part modules prior to final vehicle assembly. The working principle relies on combining structural fastener insertion, automated fluid gasketing, and electromechanical wiring harness routing under strict quality governance. While individual structural parts are often shaped via CNC-Bearbeitung or sheet metal stamping, complex modular units rely entirely on efficient turnkey integration techniques.
To execute structured integration workflows on modular vehicle systems, technicians could follow these practical steps:

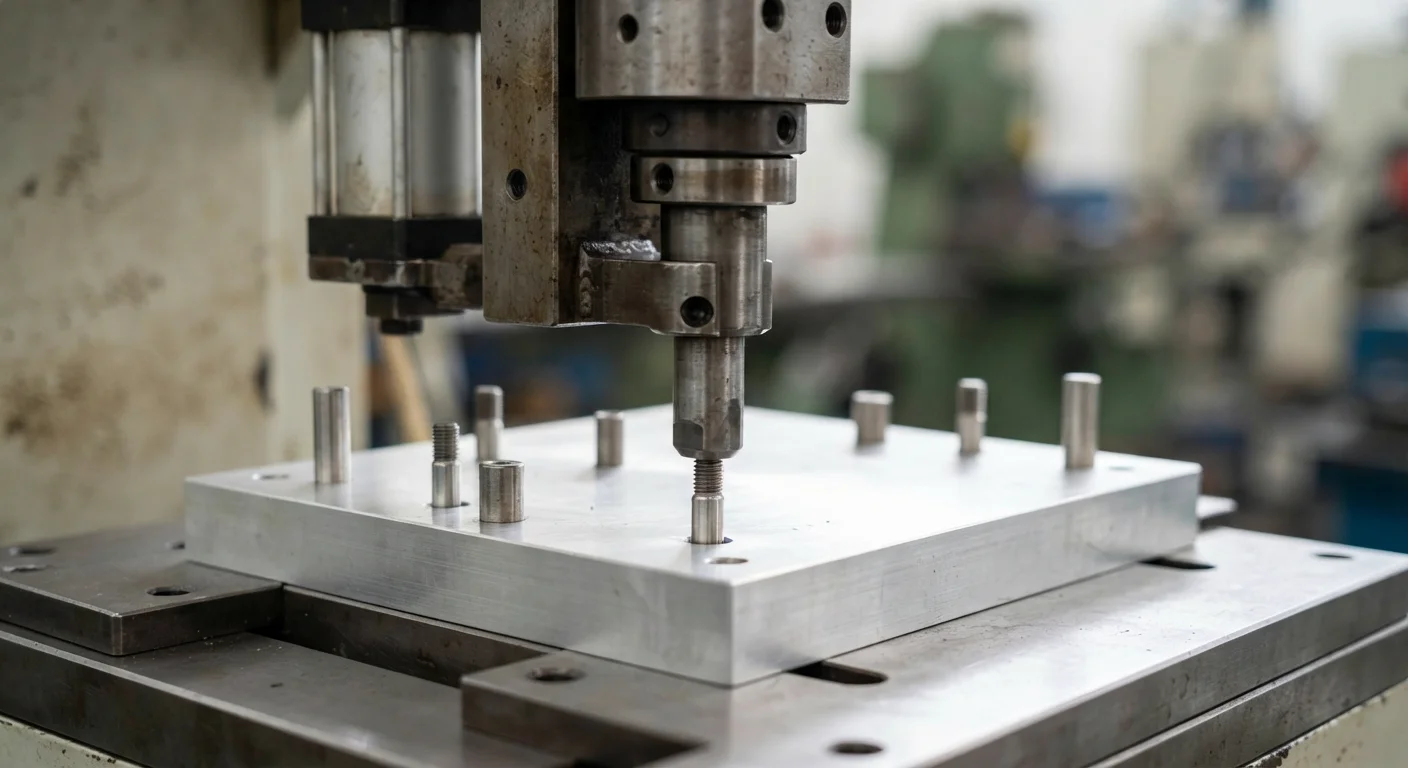

- Hardware Insertion: Press PEM threaded studs, standoffs, and blind rivets securely into stamped or milled metal plates.

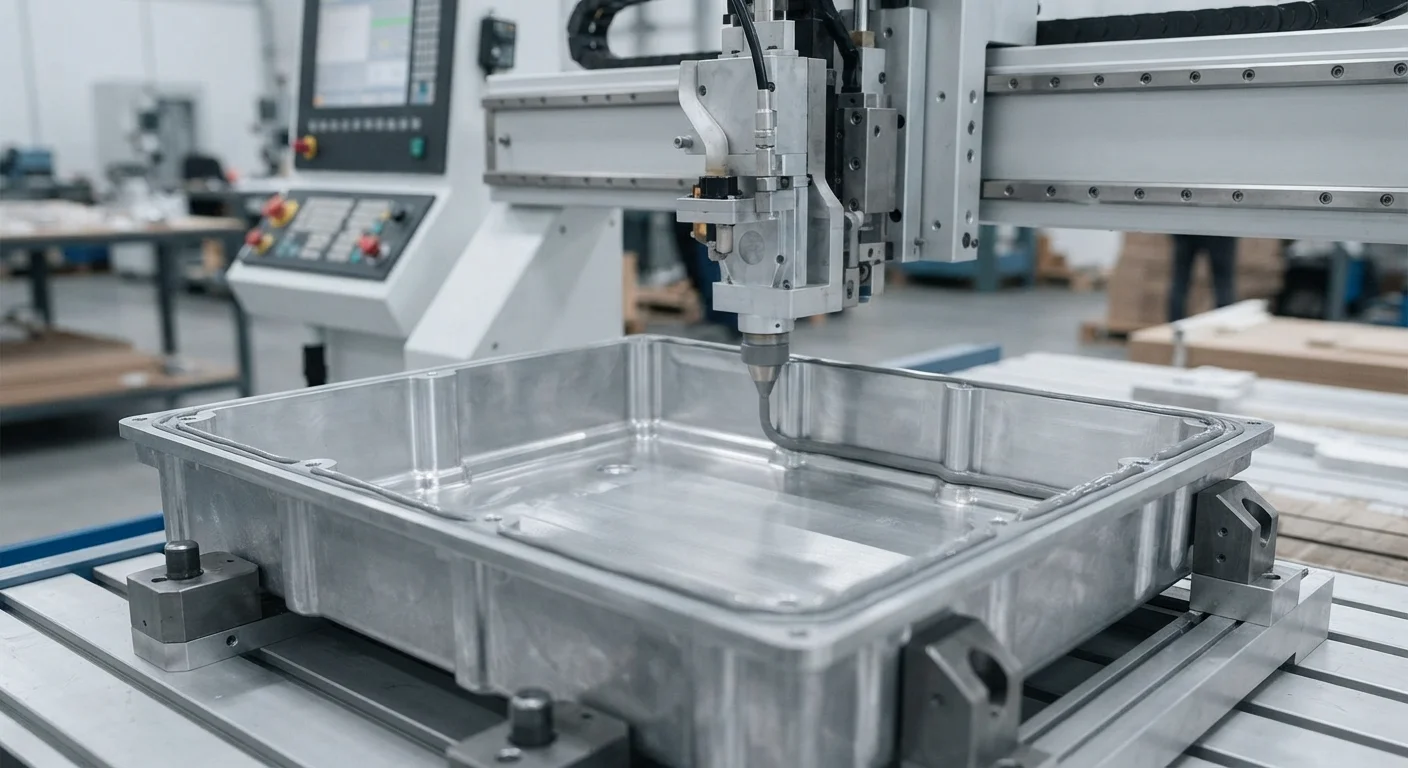

- Automated Gasket Dispensing: Apply continuous polyurethane foam seals along enclosure perimeters to achieve IP67/IP68 waterproof protection.
- Electromechanical Wiring: Route high-voltage busbars and electronic control harnesses systematically inside structural housing frames.
Modul 2 – Kernanwendungsszenarien
Turnkey modular integration is vital across electric vehicle battery distribution units, advanced driver assistance sensor arrays, and custom thermal management boxes where pre-tested reliability dictates assembly line efficiency. When engineering teams deploy complete functional units, integrating specialized automotive sub assembly cells solves critical multi-vendor coordination hurdles. Feedback from professional prototyping groups on Reddit and Facebook indicates that pre-assembled modules save countless hours on the factory floor.
Zu den primären Anwendungsbereichen gehören:

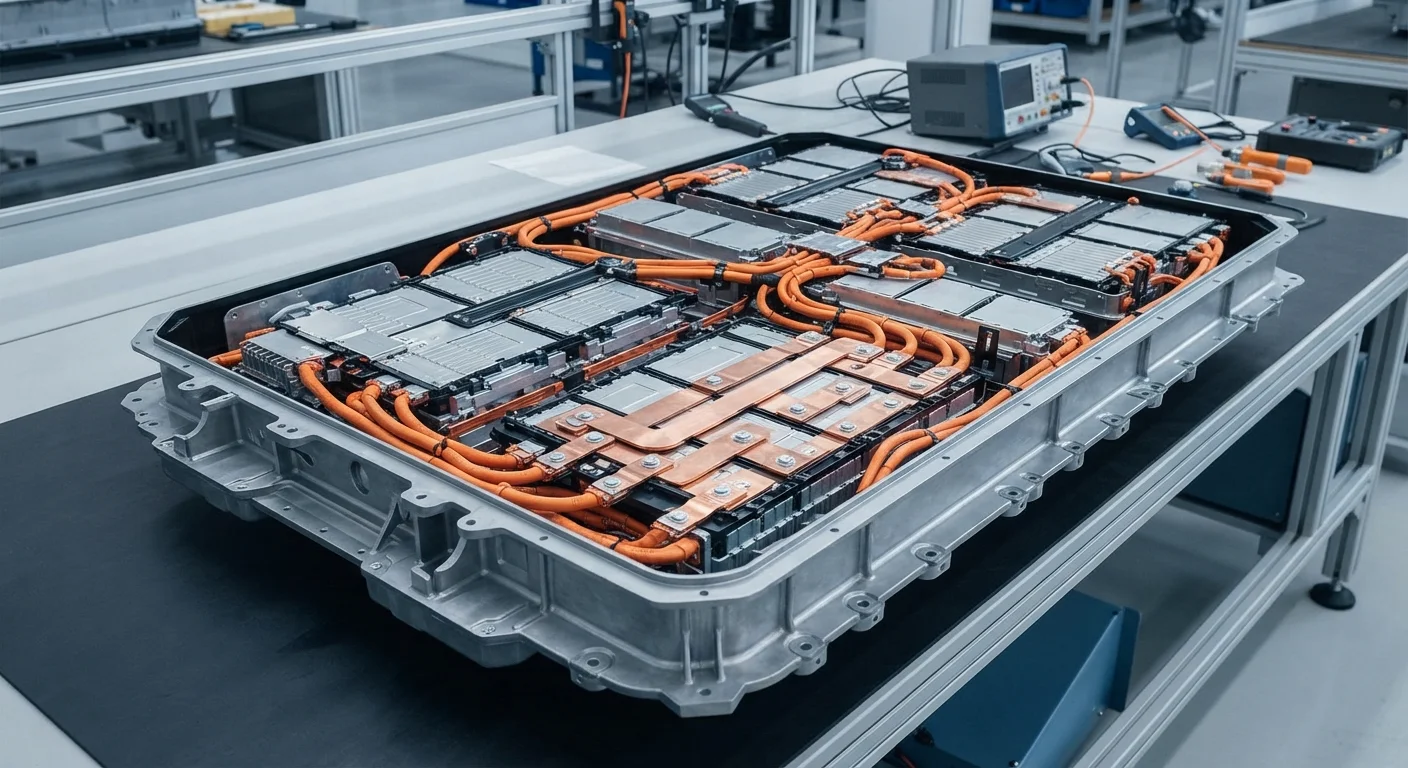

- EV Power Distribution: Integrating heavy copper busbars, fuse blocks, and wiring harnesses inside sealed structural aluminum boxes.
- IP67/IP68 Enclosures: Assembling waterproof control units featuring automated liquid-dispensed foam gasketing and threaded fastener inserts.
- Sensor Mounting Modules: Combining precision-milled brackets with electronic control boards for automated driver assistance systems.
Modul 3 – Wichtige Auswahlfaktoren für den Projekterfolg
When specifying turnkey integration services for vehicle programs, engineering teams must weigh fastener retention strength, hermetic seal integrity, and end-of-line testing protocols. Evaluating these core parameters ensures your modules arrive ready for immediate installation.
| Integration Operation | Execution & Tooling Method | Primärer funktionaler Nutzen |
|---|---|---|
| PEM Hardware Insertion | Pneumatic presses and specialized dies | Provides flush, high-torque threaded attachment points |
| Automated Liquid Gasketing | CNC fluid dispensing robots | Delivers seamless IP67/IP68 waterproof perimeter seals |

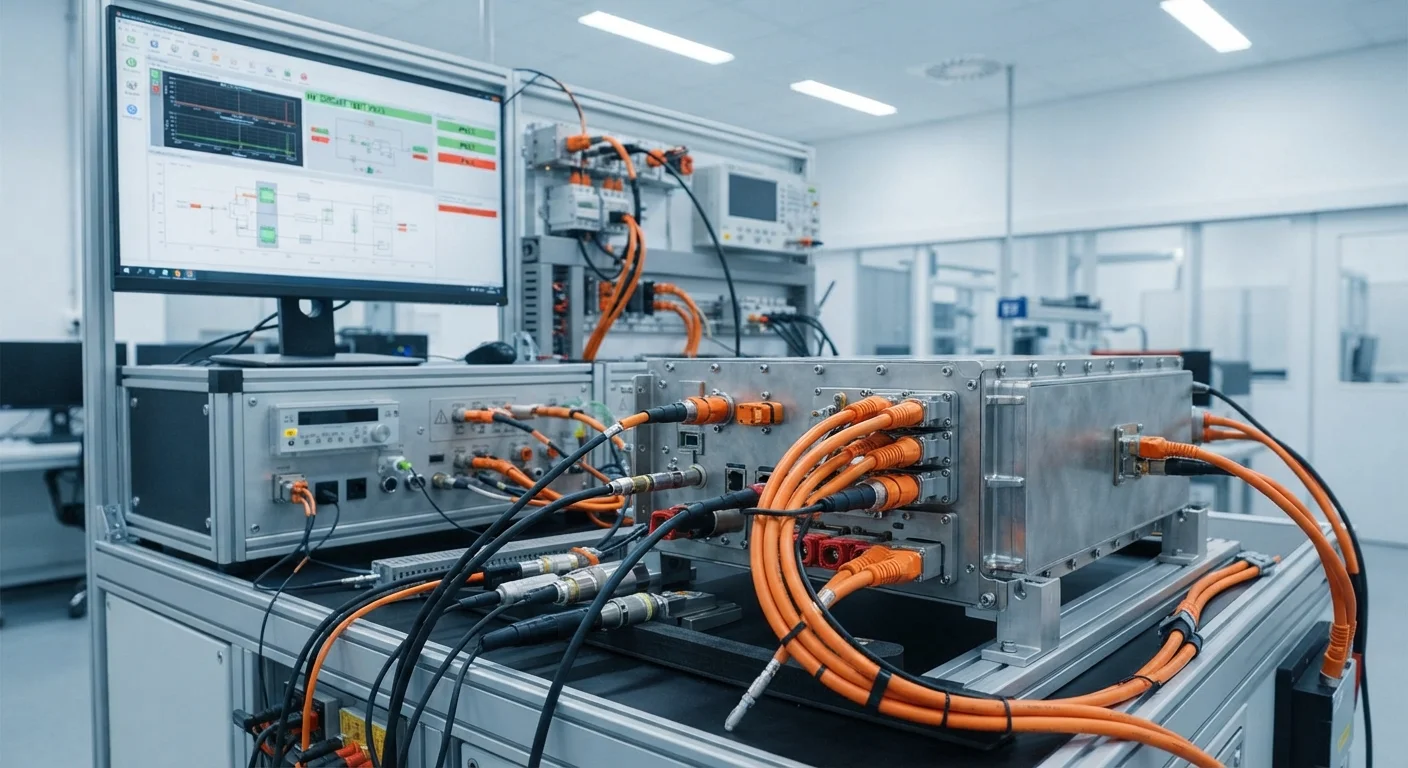

| End-of-Line Electrical Testing | Automated continuity and pressure test rigs | Guarantees zero wiring defects and leak-proof performance |
Modul 4 – Installations- und Wartungstipps
Proper shop-floor handling and routine system testing safeguard integrated modules across active vehicle final assembly stages. Protecting pre-installed electrical wiring and gasket seals from mechanical over-stress ensures long-term operational reliability.
Wichtige Installations- und Wartungstipps umfassen:
- Torque Verification: Use calibrated drivers to tighten fastening bolts evenly across modular mating flanges.
- Gasket Compression Checks: Inspect foam seals visually during chassis mounting to ensure uniform perimeter compression.
- Harness Strain Relief: Secure internal wiring bundles with cable ties to prevent vibration chafing against sharp metal edges.
Modul 5 – Häufig gestellte Fragen (FAQ)
1. What are the benefits of outsourcing automotive sub-assembly integration?
Outsourcing reduces supply chain complexity, cuts internal assembly labor costs, and ensures single-vendor accountability for pre-tested functional modules.
2. How are IP67 waterproof seals achieved on integrated enclosures?
IP67 seals are achieved using automated CNC dispensers that lay down continuous polyurethane foam gaskets along enclosure mating flanges.
3. Can threaded PEM hardware be inserted into aluminum plates?
Yes, pneumatic presses squeeze self-clinching PEM studs and standoffs securely into pre-drilled holes on aluminum or steel plates.
4. What quality tests are performed on completed electrical modules?

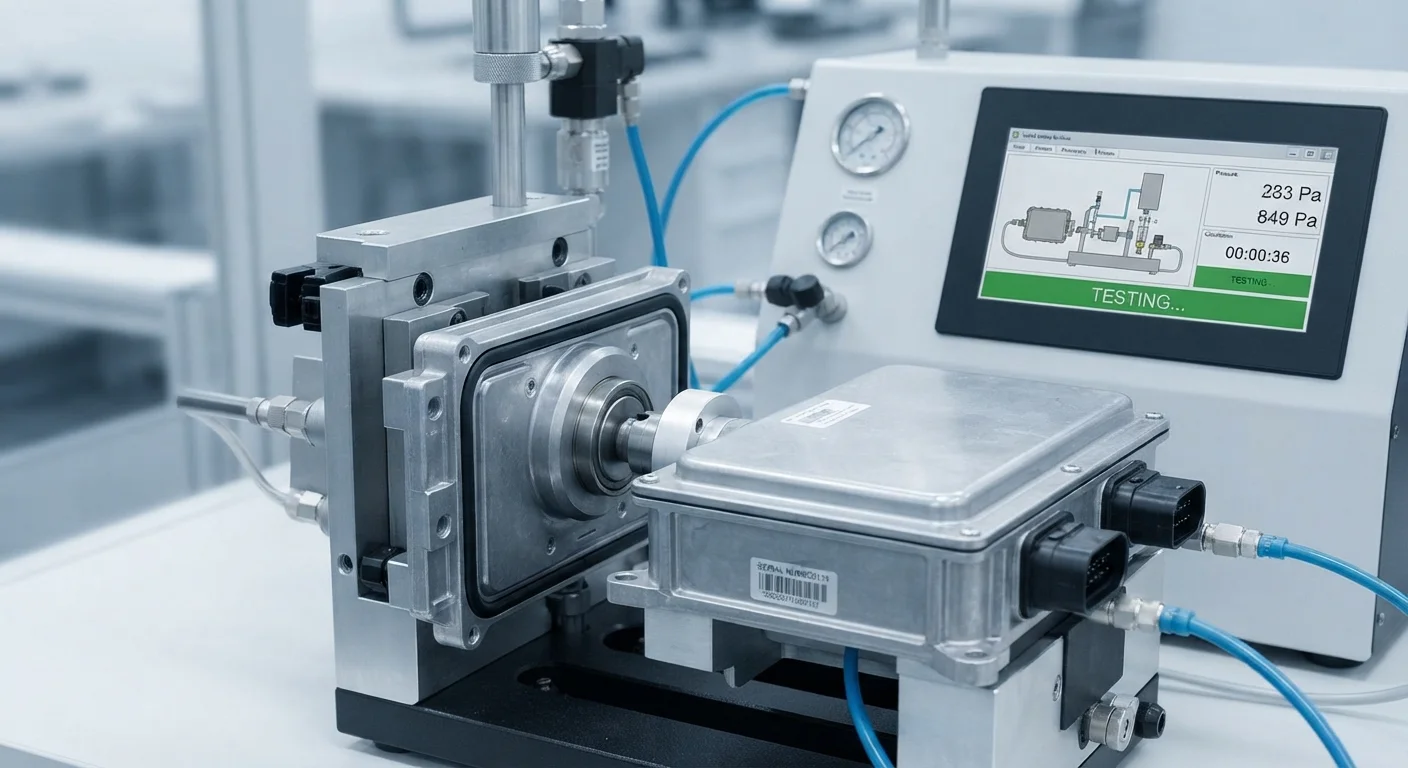

Modules undergo automated electrical continuity checks, high-voltage insulation testing, and pressure-decay leak detection prior to shipment.
5. Why is traceability important for integrated vehicle assemblies?
Traceability ensures every fastener, gasket, and electrical harness can be tracked back to its original certified batch for IATF 16949 compliance.
6. How does Jucheng Precision execute turnkey component integration?
Jucheng Precision provides comprehensive turnkey assembly, PEM insertion, automated gasketing, and end-of-line testing under strict IATF 16949 quality controls.
Modul 6 – Warum JUCHENG für Ihr Projekt wählen

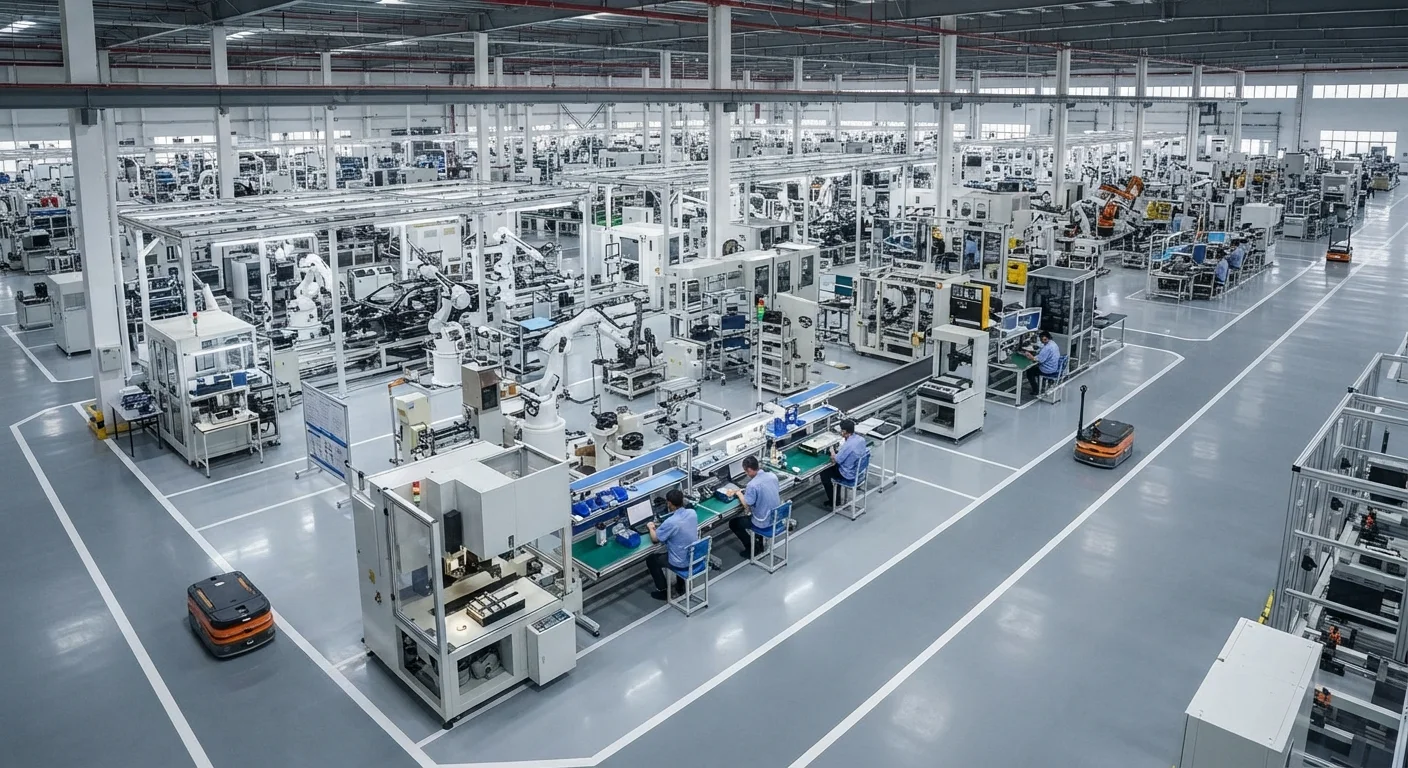

Achieving seamless modular integration requires an experienced manufacturing partner with robust turnkey capabilities. JUCHENG unterstützt Hardware-Innovatoren durch die Bereitstellung umfassender 24-Stunden-kostenlose DFM reviews that analyze fastener placement, sealing perimeters, and wiring routes prior to production. Founded in Shenzhen in 2012 with an 8,000-square-meter facility in Dongguan, our factory houses 150+ advanced machines, alongside specialized assembly and testing bays.
Backed by ISO 9001, ISO 14001, ISO 13485, and IATF 16949 certifications, our engineering teams ensure that executing high-performance automotive sub assembly programs achieves turnkey precision and absolute delivery reliability [9.10].
